AZ8758 Wet Bulb Globe Temperature WBGT Heat Index 40 mm Black Ball WBGT Monitor

AZ8758 Wet Bulb Globe Temperature WBGT Heat Index 40 mm Black Ball WBGT Monitor

Model No.︰AZ8758

Brand Name︰AERMANDA

Country of Origin︰China

Unit Price︰US $ 90 / Piece

Minimum Order︰1 Piece

Inquire Now

Product Description

Features



8758 AZ WBGT Checker features:
*Check Indoor/outdoor WBGT, TA/TG and Humidity
*Very useful tool to prevent heat stroke
*Check dangerous heat condition through WBGT
*Programmable audible beeper for danger zone warning
*The black ball thermometer is for measuring radiant temperature with a 40 mm dia. black ball
*Protect sensors with a clear sheath moving up and down
*Easy to self calibrate relative humidity with 33% & 75% salt bottle by moving the black ball and clear tube
*Built-in PC interface for real time download and data analysis
*Adjustable WBGT alarm threshold
*Tripod receptacle design for long time Temperature monitoring



Application



Application of 8758 AZ Portable WBGT Monitor:


The Wet Bulb Globe Temperature (WBGT) is a composite temperature used to estimate the effect of

temperature, humidity, wind speed and solar radiation on humans.

The 8758 AZ Portable WBGT Meter could measure the Heat Stress in direct sunlight. The WBGT

measurement had been considered as a good element for monitoring the outdoor activities and Prevent

people to get Heat Stroke.

It is used by industrial hygienists, athletes and military to determine appropriate exposure levels to

high temperatures. Military agencies, OSHA and many nations use the WBGT as a guide to managing

workload in direct sunlight.

The 8758 AZ Portable WBGT Meter could measure the indoor/ outdoor WBGT, TA/TG and Humidity. User

could download the real time value via USB cable to PC. It could be applied for measuring the WBGT

value in construction, iron and steel foundries, bricks-firing plants, glass facilities, boiler rooms, mining

sites, army training, marathon, beach activities and so on.



Specification



Specification of 8758 AZ Portable WBGT Monitor:

Model

8758

Temperature Range

0~50℃

Temperature Resolution

0.1℃, 0.1℉

Temperature Accuracy

±0.6℃

Humidity Range

0.1~99.9% RH

Humidity Resolution

0.1% RH

Humidity Accuracy

±3%RH (at 25℃, 10~90%RH); others ±5%RH

Global Temperature (Inside Black Ball)

0~80℃

Global Temp. Accuracy (Indoor)

±2℃at 15~40℃, others ±2.5℃

Global Temp. Accuracy (Outdoor)

±3℃at 15~40℃, others ±3.5℃

Black Ball Size

Diameter 40 mm, Height 35 mm

Stabilization Time

15~25 minutes typical

RH% Self Calibration

With 33% & 75% Salt Bottle

Operating Temperature

0~50℃

Operating RH%

Humidity <80%

Storage Temperature

-20~50℃

Storage RH%

Humidity <90%

LCD Size

33(L) * 28(W) mm

Meter Size

254(L) * 48.7(W) * 30.9(H) mm

Weight

~120g

Battery

AAA * 2PCS

Battery life

>250 hours

Standard Package

Meter, Batteries, Manual, Paper Box

Optional Accessory

USB Software Kit, 33% & 75 % Salt Bottle

Price Terms︰ FOB Shenzhen

Payment Terms︰ TT/Western Union/Paypal

Packing︰ Export carton

Lead Time︰ 3 days

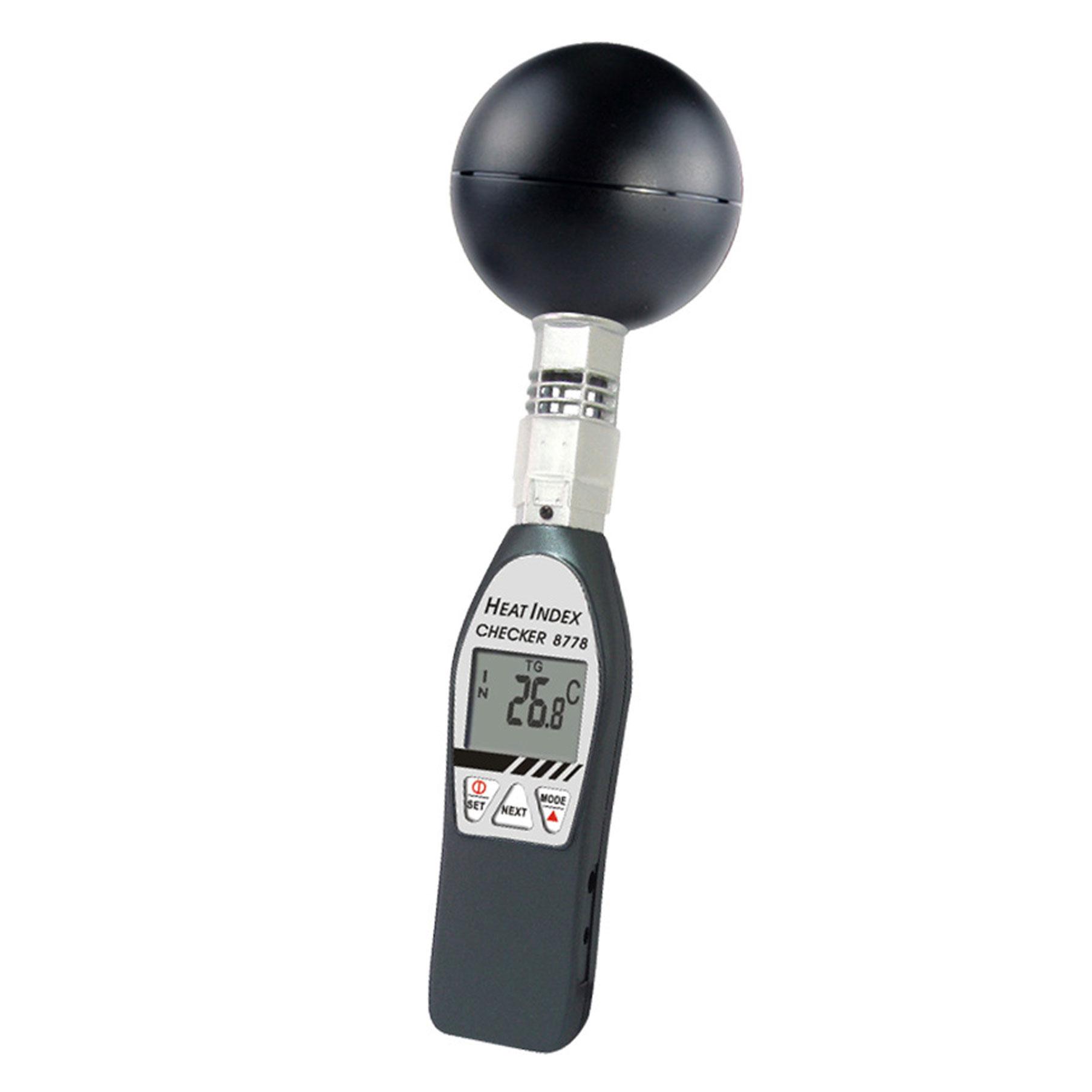

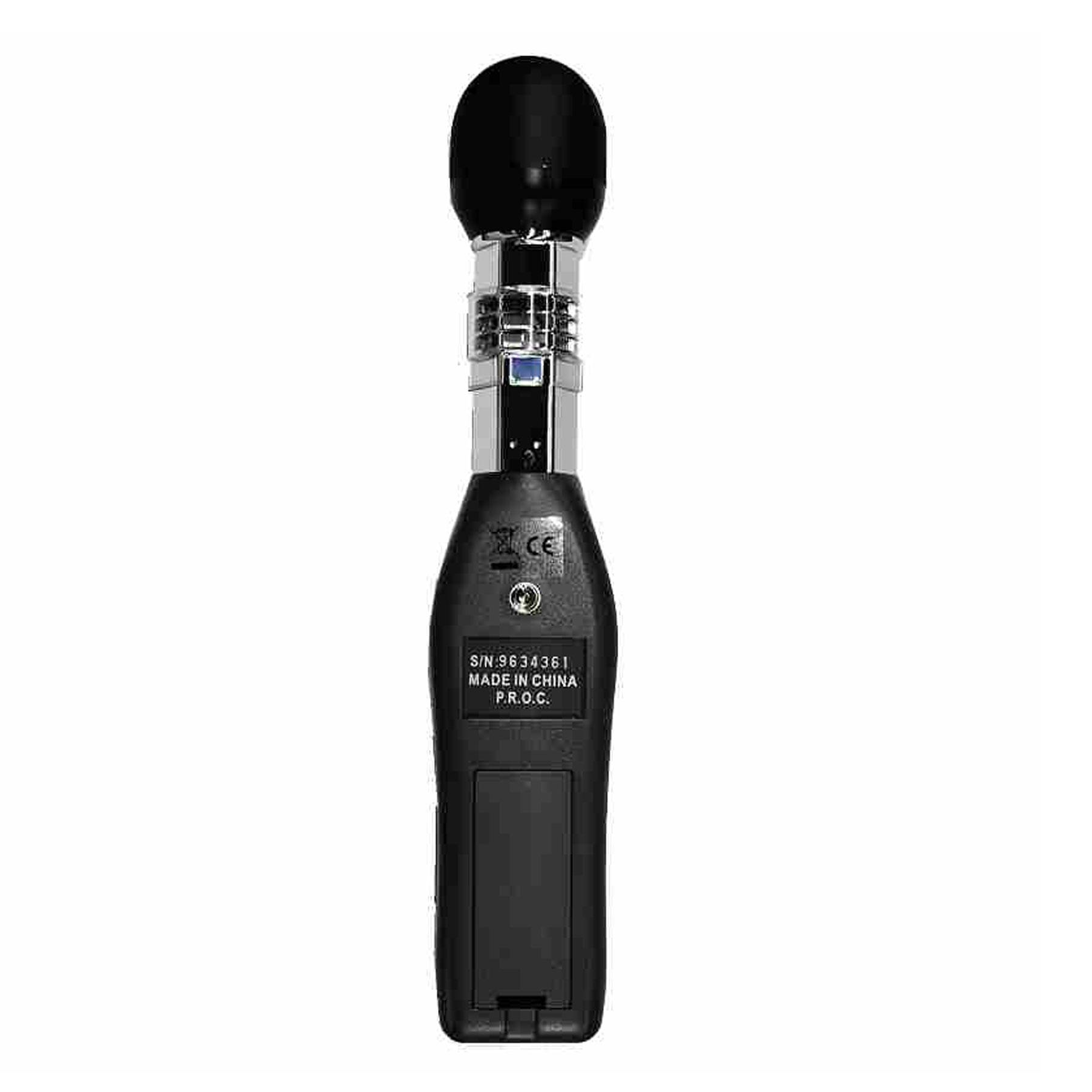

Product Image
