AZ87798 Dew Point RH% Thermo Hygrometer SD Card Logger Humidity Monitor Recorder

Model No.︰

AZ87798

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 145 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Features

87798 AZ Dew Point Hygrometer SD Card Logger features:
* Simultaneously display temperature and humidity
* Advanced SD card logging design for continuous recording
* Easy-to-read super big LCD display
* Check humidity condense conditions through dew point
* Programmable danger zone for warning purpose
* Design with capacitance type RH sensor to get accurate and quick reading
* Temperature unit C/F switchable
* Max / Min function to review data
* Battery low indicator
* Real time display (Hour & Minute, AM/PM)
* Desktop and wall mount for long time monitor
* Audible beeper and bright red LED for danger zone warning
* Long battery life (via alkaline battery)
- No logging: One year
- Logging: One month (sampling rate: 1 min, 1G SD card)
* Excellent tool as the Dew Point Meter

Application

Application of 87798 AZ Desktop Humidity Monitor Recorder:


The 87798 AZ Dew point SD Card Monitor can measure and record the Temperature, Relative Humidity and

Dew Point value.
The Dew point is the temperature to which air must be cooled to become saturated with water vapor.

The measurement of dew point is related to humidity. A higher dew point means there will be more moisture

in the air.

The 87798 AZ Humidity Dew point Measuring Instrument Logging Device could save the temperature,

humidity & dew point value into the SD card as the TXT format, and then user could proceed with their

following analysis by the Excel or other software. The SD card could be inserted and taken off easily. You

would not need to install any special software to read the temperature records. It could be operated easily in

different PC operation systems.

The 87798 AZ Dew point SD Card Data Logger has a big LCD to show the real time temperature, humidity,

Dew point temperature and time as the environmental monitoring clock. It could be used for the warehouse,

work space, laboratories, basement, wine cellar or other controlled environment.

Specification

Specification of 87798 AZ Desktop Humidity Monitor Recorder:

Model

87798

Temperature Range

-10~70℃

Temperature Resolution

0.1℃, 0.1℉

Temperature Accuracy

±1℃

Humidity Range

0~99.9% RH

Humidity Resolution

0.1% RH

Humidity Accuracy

±3%RH (at 25℃. 10~90%RH, others ±5%RH)

Dew Point Temp. Range

-20~70℃

SD Card

SD Card or SDHC card (MMC and SDXC cards are not compatible)

Sampling Rate

1 to 720 mins. Default:10 mins

Beeper (dB)

~65dB

RH% Self Calibration

Yes, Via slat chamber

Power Consumption

<0.4mA

LCD Size

70(L) * 63(W) mm

Operating Temperature

0~50℃

Operating RH%

Humidity <90%

Storage Temperature

-10~50℃

Storage RH%

Humidity <90%

Meter Size

110(L) * 91(W) * 30(H) mm

Weight

~200g

Battery

AA*3PCS or 5V Adaptor

Standard Package

Meter, Adaptor, Manual, Paper Box, SD Card



Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 3 days

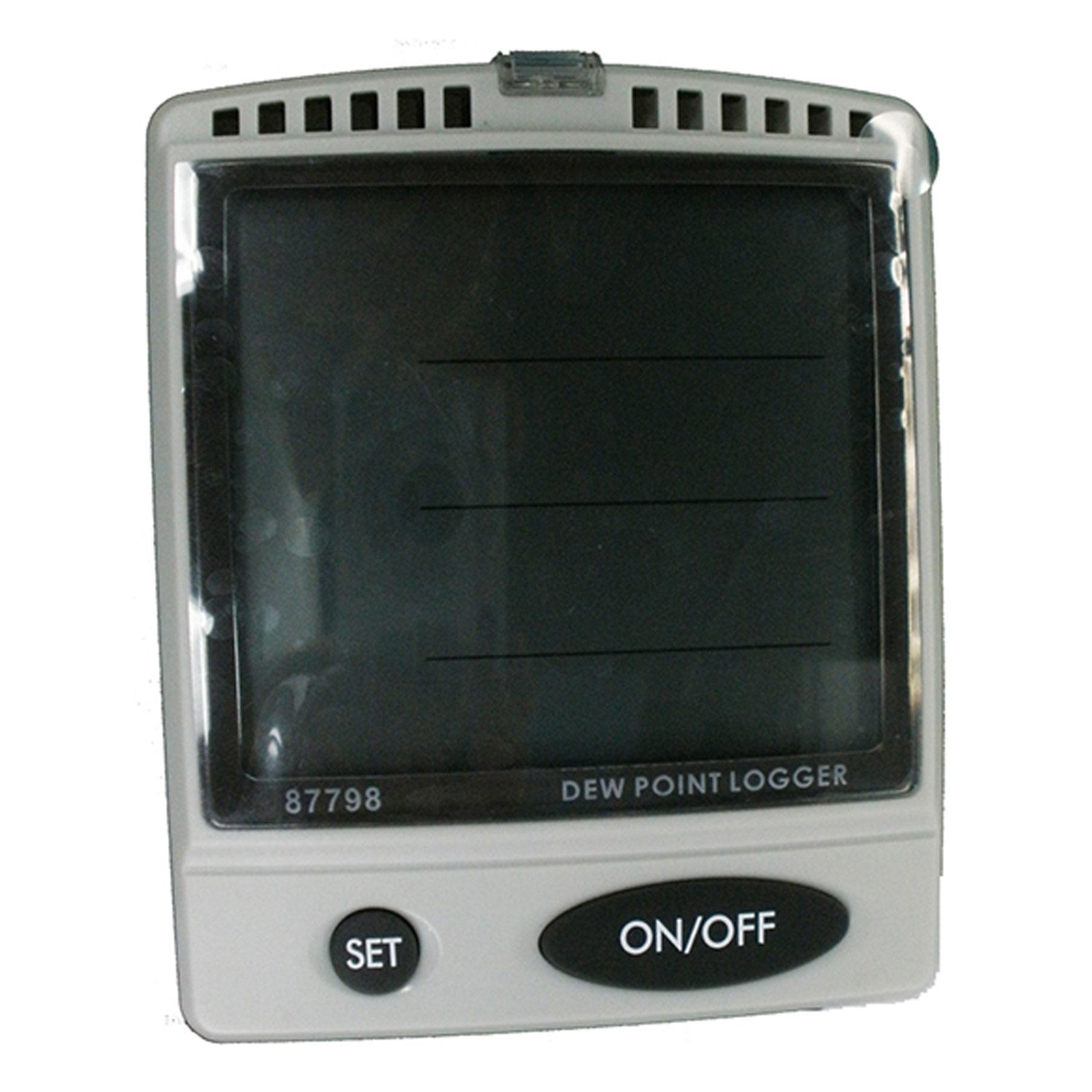

Product Image
