AZ96315 15 psi Manometer Differential Pressure Meter Air Pressure Gauge Recorder

Model No.︰

AZ96315

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 210 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Features

96315 AZ 15 psi Digital Manometer features:
* Measuring and recording gauge pressure & differential pressure 3 measurement modes:
-Single point measurement
-Manual record up to 99 points
-Automatically record up to 12000 points
* 11 units for selection (metric, imperial)
* Automatic recording is programmable
* RS232 interface with software enable to link to PC for downloading data
* Uploading pre-edited header from PC to meter
* Plastic & metal available
-4 mm, metal only
-8 mm, metal or plastic

Application

Application of 96315 AZ 15 psi Digital Manometer Recorder:


The 96315 AZ Digital Manometer Recorder can be operated by the batteries or adaptor, which could be help user to

measure and record the air differential pressure easily. It also could be program anywhere, any time.

The 96315 AZ Differential Pressure Meter Recorder could attach to the tripod for long time usage. It could measure

the gauge pressure with reference to ambient pressure or differential pressure between pressures. It is the ideal tool

for HVAC/R technicians measuring pressure level, medical equipment, computer peripherals and pneumatic controls.

There are 11 pressure units could be selected for imperial and metric with 96315 AZ Gauge Pressure Data Logger,

including the psi, kPa, mmHg, Kg/cm2, mbar(hpa), bar, inH2O, cmH2O, inHg, ftH2O and Oz/inch2, which could be

applied for Pharmaceutical, Chemical/Petrochemical, Food and Power Industry.

Specification

Specification of 96315 AZ 15 psi Digital Manometer Recorder:

Model

96315

psi Range (Resolution)

±15.00 (0.01)

kPa Range (Resolution)

±103.4 (0.1)

mmHg Range (Resolution)

±775.7 (0.5)

Kg/cm2 Range (Resolution)

±1.055 (0.001)

mbar (hpa) Range (Resolution)

±1034 (1)

bar Range (Resolution)

±1.034 (0.001)

inH2O Range (Resolution)

±415.2 (0.3)

cmH2O Range (Resolution)

±1051 (1)

inHg Range (Resolution)

±30.54 (0.02)

ftH2O Range (Resolution)

±34.60 (0.02)

oz/inch2 Range (Resolution)

±240.0 (0.2)

Accuracy (25℃, 77℉)

±0.3% of full scale

Repeatability

±0.2~0.5% of full scale

Linearity/Hysteresis

±0.29~1% of full scale

Combined Accuracy

±1.0% of full scale

Response Time

0.5 second

Compensated Temperature Range

0~50℃

LCD Size

45(L) *26(W) mm

Operating Temperature

0~50℃

Operating RH%

Humidity <80%

Storage Temperature

-20~50℃

Storage RH%

Humidity <90%

Meter Size

171(L) * 70(W) * 39.5(H) mm

Weight

~260g

Battery

AAA Battery * 4 PCS or 9V adaptor

Standard Package

Meter, Battery, Manual, Connection Hose*2,
Hard Carry Case, Software CD & Cable



Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 4 days

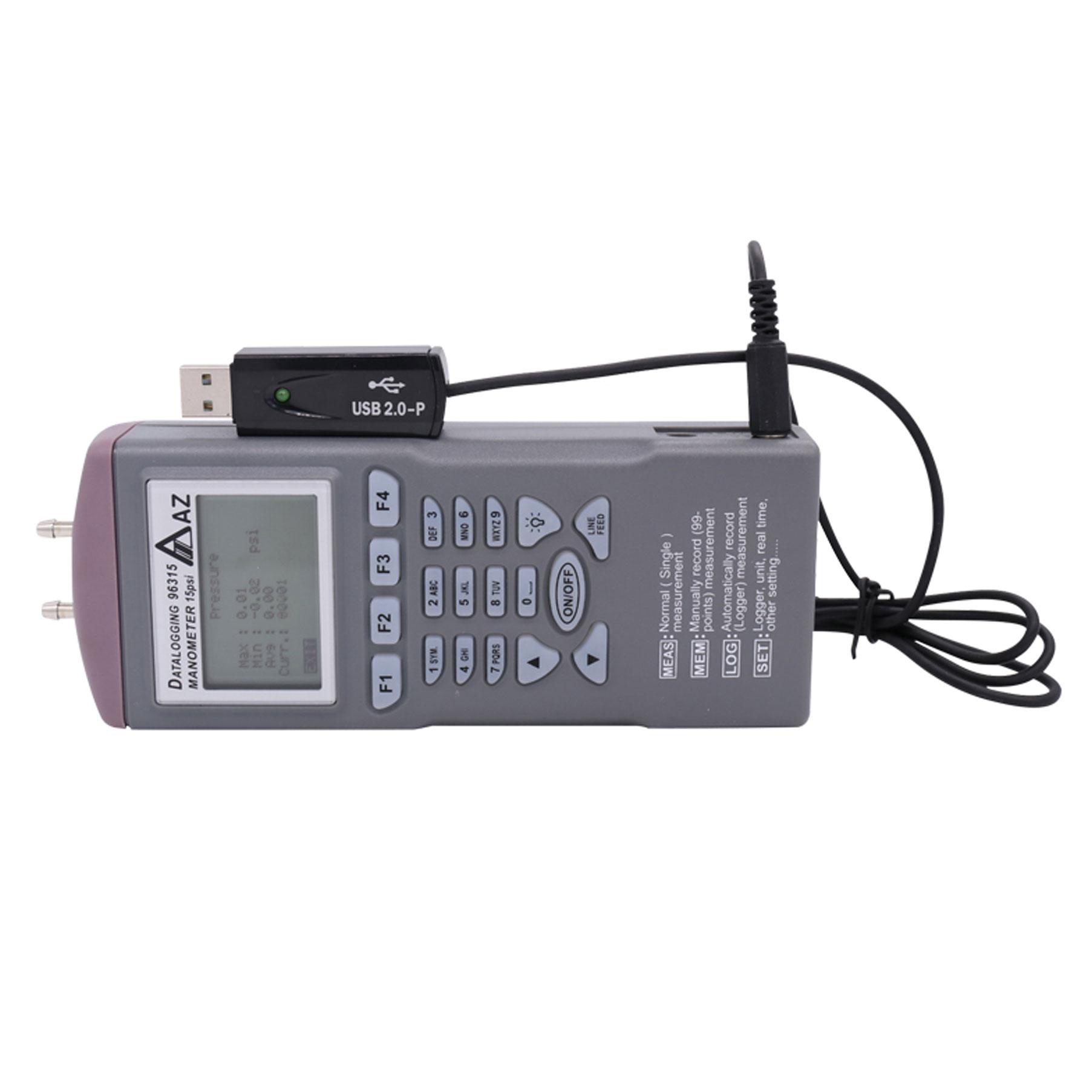

Product Image
