Digital SRT-6100 Surface Roughness Tester Meter Gauge Ra Rz 0.05~10.00um

Model No.︰

SRT-6100

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 475 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Digital SRT-6100 Surface Roughness Tester Meter Gauge Ra Rz 0.05~10.00um



Widely used in production site to measure surface roughness of various machinery-processed parts.




Features

* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz.
* Highly sophisticated inductance sensor.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Principle

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

Specifications

Standards

GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1

Display

LCD

Parameters

Ra,Rz

Range

Ra:0.05~10.00µm  Rz:0.1~50.0µm

Accuracy

<<±15%

Fluctuation of Display Value

<<10%

Resolution

0.001/0.01/0.1

Sensor

Radius of Probe Pin

10µm

Material of Probe Pin

Diamond

Measurement Force of Probe

16mN(1.6gf)

Probe Angle

90º

Vertical Radius of Guiding Head

48 mm

Maximum Driving Stroke

12.5mm/0.5inch

Cutoff length(l)

0.25mm,0.8mm,2.5mm

Driving Speed

Sampling

When Length=0.25mm,Vt=0.135 mm/s

When Length=0.8mm,Vt=0.5mm/s

When Length=2.5mm,Vt=1mm/s

Returning

Vt=1mm/s

Evaluation Length

1~2L Optional

Operating Conditions

Temp:0~50ºC   Humidity:<80%RH

Power Supply

4x1.5V AA(UM-3)Battery

Dimensions

128x80x30 mm

Weight

280g

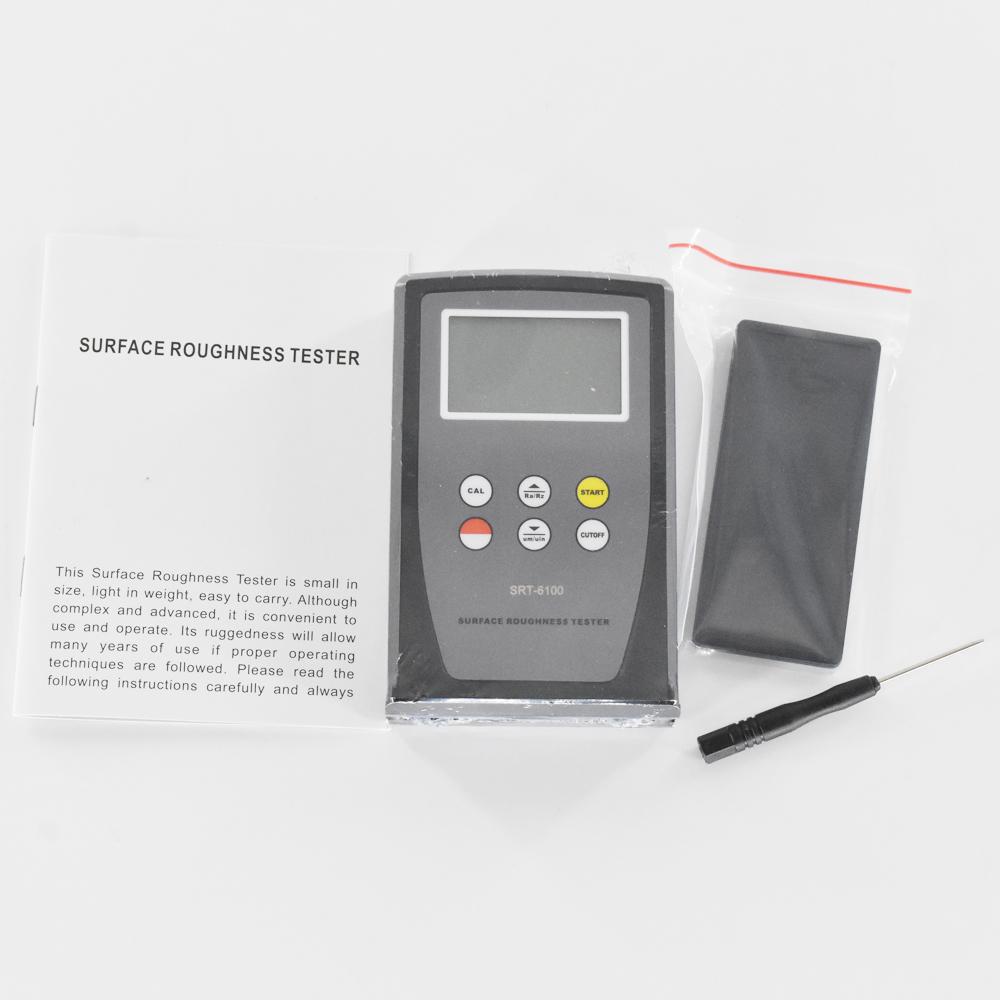

Standard Accessories

Main Unit

Standard Sample Plate SSP-100

Standard Sensor SRP-100

Small Screwdriver

Carrying Case ( B04 )

Operation Manual

Optinal Accessories

RS-232C Cable with Software

Bluetooth Adapter with Software



Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 3 days
