Digital Surface Profile Gauge SRT-6223+ Roughness Tester 0 ~ 800 µm

Model No.︰

SRT-6223+

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 282 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Digital Surface Profile Gauge SRT-6223+ Roughness Tester 0 ~ 800 µm



This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces.




Features

* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.
* Separate Probe.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications

Display

LCD

Range

0 ~ 800 µm/29.5 mils

Accuracy

±5%or±5µm,(whichever is the greater)

Resolution

0.1µm/ 1µm

0.1mils

Principle

Inductance Type

Operating

Temperature :0 ~ 50°C

Conditions

Humidity :< 80% RH

Power Supply

4x1.5V AAA(UM-4)Battery

Dimensions

126x65x28 mm

Weight

280 g

Stangard

Accessories

Main Unit

Sensor

Standard Sample Plate

Carrying Case (B04)

Operation Manual

Optional Accessories

USBCable with Software

Bluetooth Adapter with Software



Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 3 days

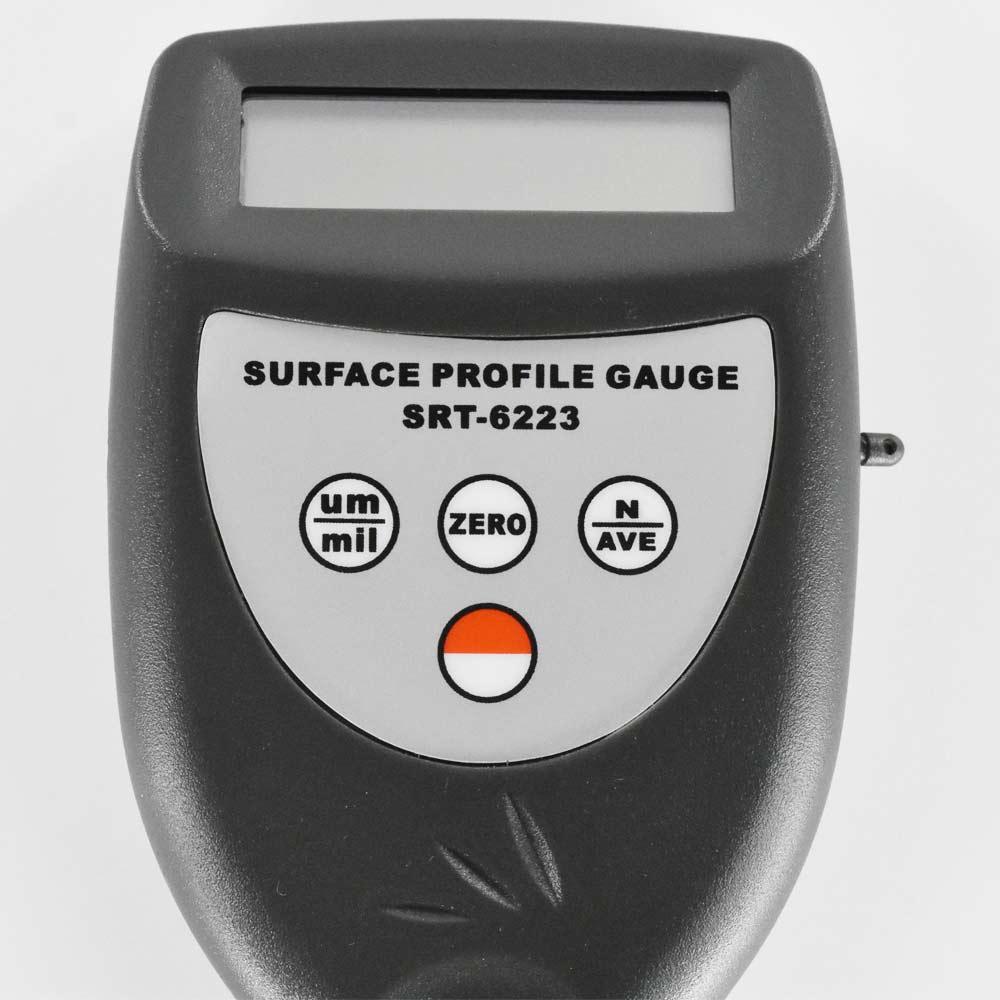

Product Image
