Portable Surface Roughness Tester SRT-6200S Multiple parameter Ra, Rz, Rq, Rt

Model No.︰

SRT-6200S

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 580 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Portable Surface Roughness Tester SRT-6200S Multiple parameter Ra, Rz, Rq, Rt



The Surface Roughness Tester SRT-6200S Widely used in production site to measure surface roughness of various machinery-processed parts.



Features

* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.



When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.



Standards

GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1

Parameters

Ra,Rq,Rz,Rt

MeasuringRange

Ra:0.05~10.00µmRz:0.020~100.0µm

/1.000~400.0µinch      /0.780~4000µinch

Accuracy

<<±10%

Fluctuation of Display Value

<<6%

Resolution

0.001/0.01/0.1

Sensor

Radius of Probe Pin

10µm

Material of Probe Pin

Diamond

Measurement Force of Probe

16mN(1.6gf)

Probe Angle

90º

Vertical Radius of Guiding Head

48 mm

Maximum Driving Stroke

17.5mm/0.7inch

Cutoff length(l)

0.25mm,0.8mm,2.5mm

Driving Speed

Sampling

When Length=0.25mm,Vt=0.135 mm/s

When Length=0.8mm,Vt=0.5mm/s

When Length=2.5mm,Vt=1mm/s

Returning

Vt=1mm/s

Profile Digital Filter

RC,PC-RC,GAUSS,D-P

Evaluation Length

1~5L Optional

Data Memorize

7 Groups

Operating Conditions

Temp:0~50ºC   Humidity:<80%RH

Power Supply

4x1.5V AAA(UM-4)Battery

Size

Main Unit Size::149x67x29mm

Measuring Base Size:185x56x47mm

Weight

485g

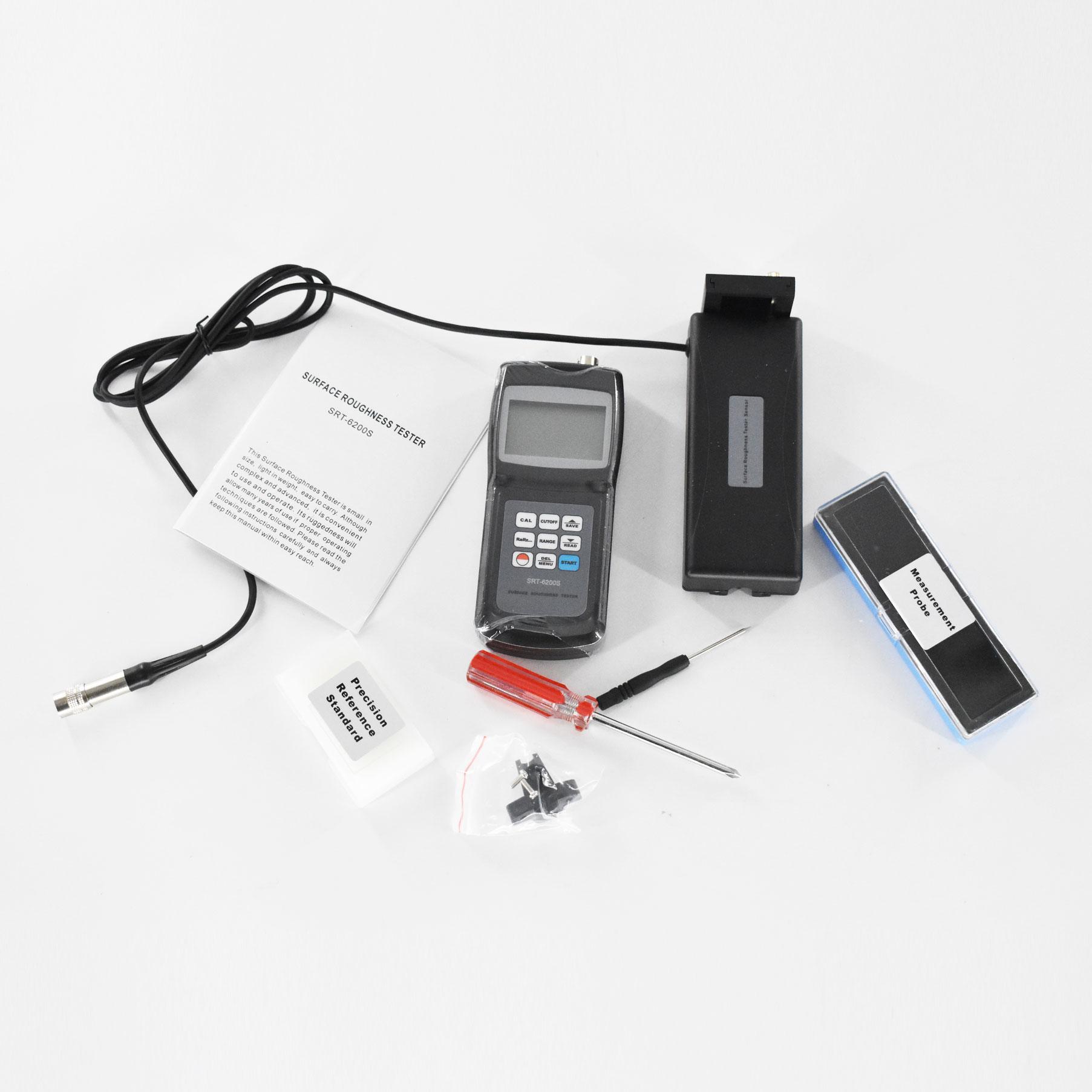

Standard Accessories

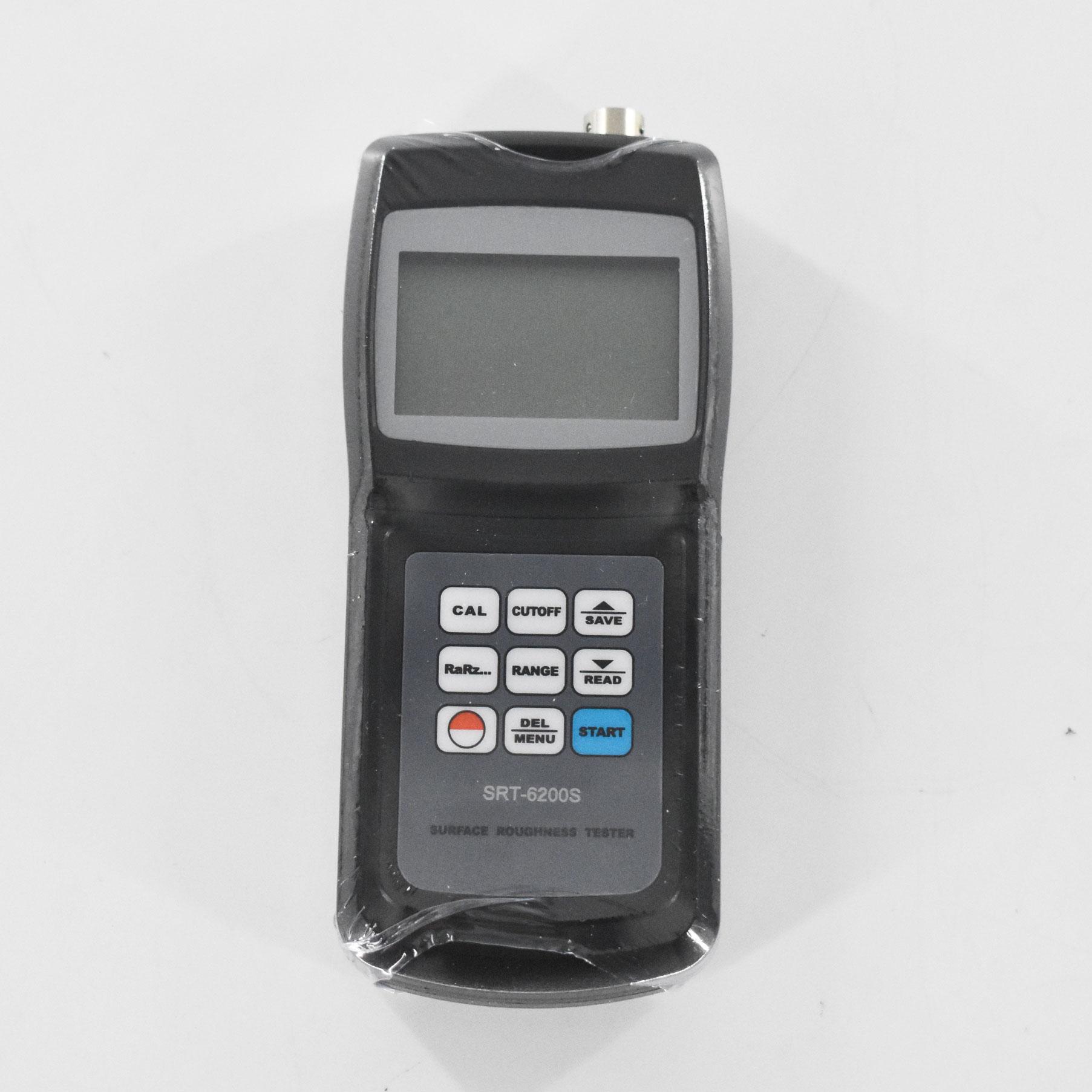

Main Unit

Standard Sample Plate SSP-100

Standard Sensor SSP-100

Small Screwdriver

Measuring Base

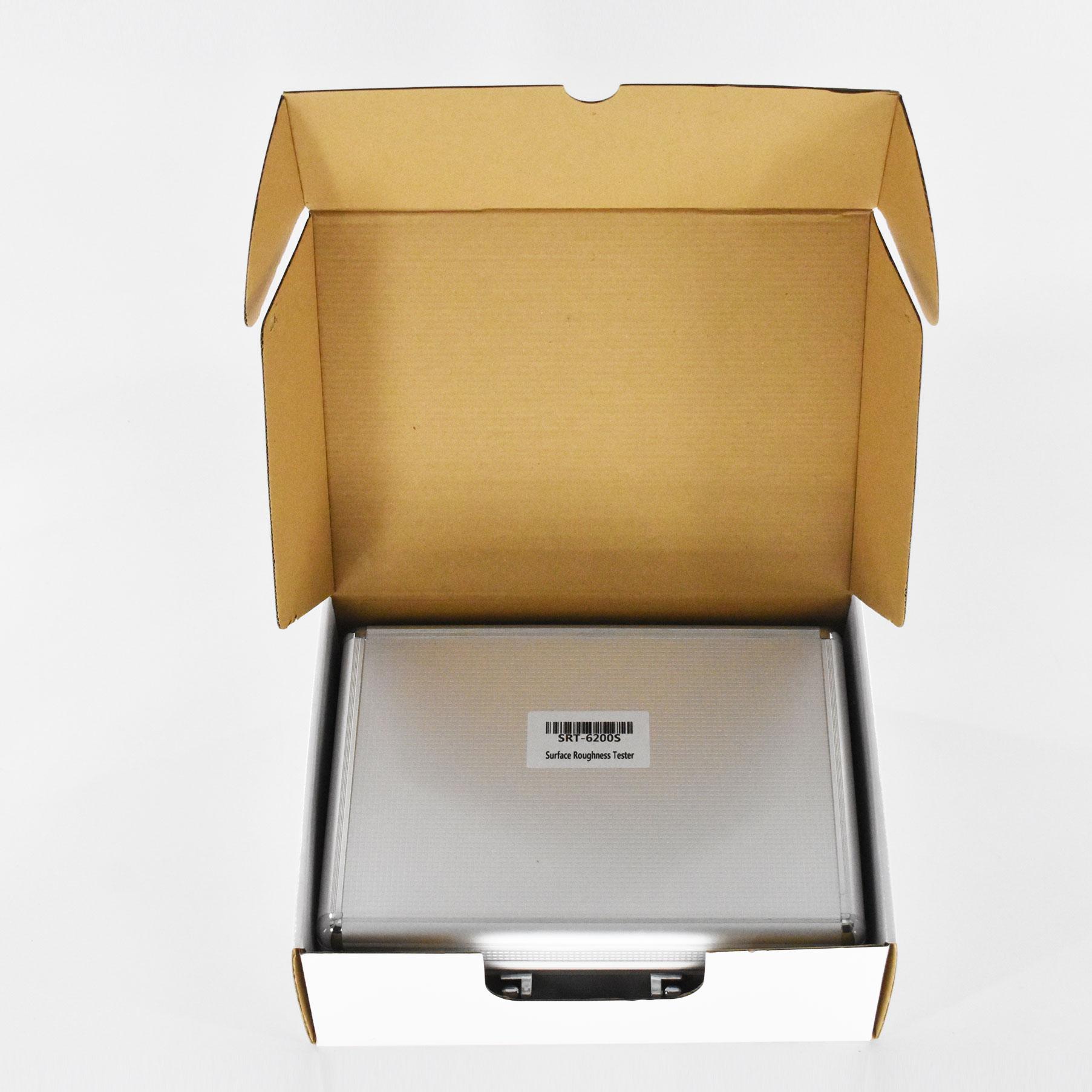

Carrying Case ( B09 )

Operation Manual

Optinal Accessories

RS-232C Cable with Software

Bluetooth Adapter with Software

Extension Rod SER-150

Groove Stylus SRP-110

Curvature Probe SRP-120

Measurement Stand SRS-1





Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 3 days

Product Image
