Digital Ultrasonic Thickness Gauge Meter TM-8812 Metal Thickness Tester

Model No.︰

TM-8812

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 151 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Digital Ultrasonic Thickness Gauge Meter TM-8812 Metal Thickness Tester



Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

Features

* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Material Selection

Code

Material

CD01

Steel

CD02

Cast Iron

CD03

Aluminum

CD04

Red Copper

CD05

Brass

CD06

Zinc

CD07

Quartz Glass

CD08

Polyethylene

CD09

PVC

CD10

Gray Cast Iron

CD11

Nodular Cast Iron

XXXX

Sound Velocity

Specifications

Display

LCD

Sensor

Ultrasonic Probe

Measuring Range

1.2~200mm/0.05~8 inch

Resolution

0.1mm

Accuracy

±(0.5%n+0.1)

Sound Velocity

1000~9,000 m/s

Lower Limit of Pipes

Φ15x2.0mmΦ20x3.0

Determined By Transducer

Operating

Conditions

Temperature

0~40ºC

Humidity

<85%RH

Power Supply

4x1.5V AAA(UM-4)Battery

Dimensions

120x62x30mm

Weight

164g(Not Including Batteries)



Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 3 days

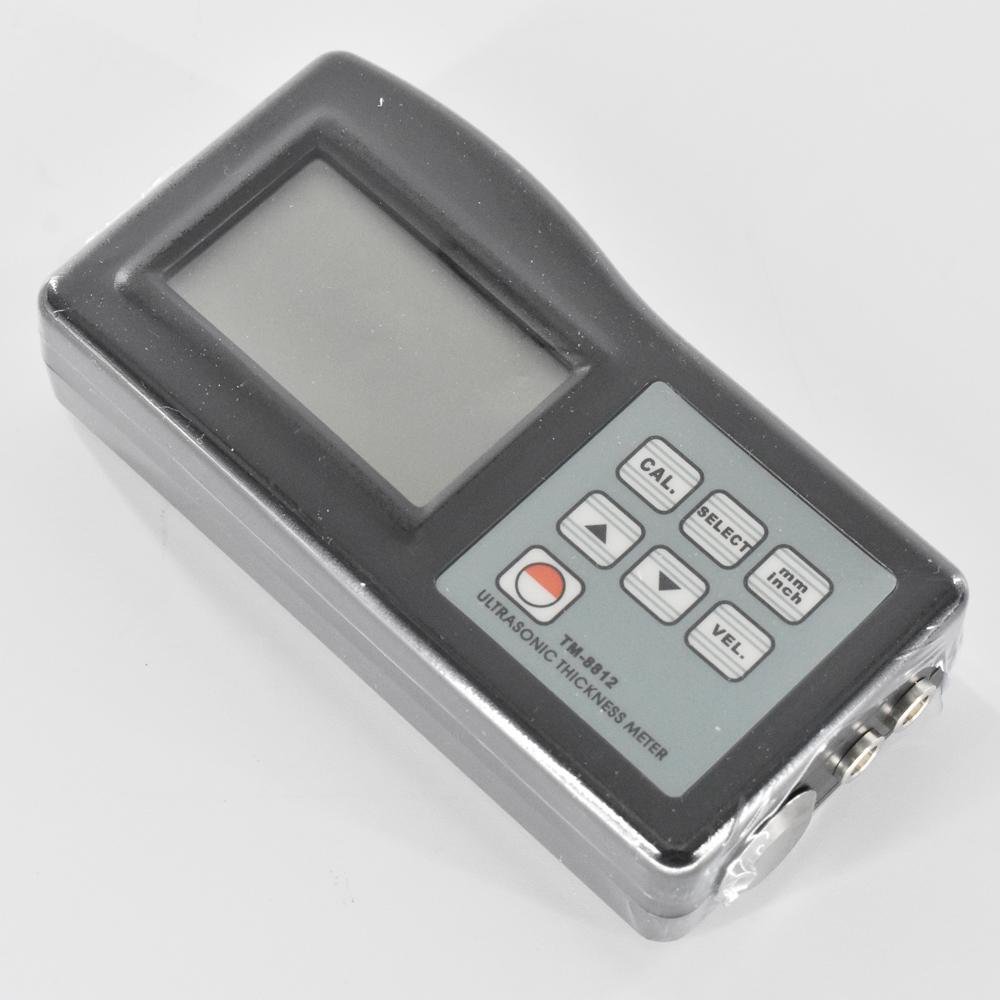

Product Image
