Ultrasonic Liquid flowmeter TUF-2000M DN25mm-DN100mm TS-2 Module Flow Meter

Model No.︰

TUF-2000M

Brand Name︰

AERMANDA

Country of Origin︰

China

Unit Price︰

US $ 120 / Piece

Minimum Order︰

1 Piece

Share on:

Product Description

Working Environment

  Main Unit Transducer
Protection Level IP65 IP68
Humidity ≤85%RH
Temperature -20~60°c -30~160°c



Basic Parameters

Accuracy

≤1%

Velocity range 0~±10m/s, Bi-directional measurement
Pipe size DN15~DN6000mm
Temperature -30~160°c
Type of liquid Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Pipe material Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Signal output

1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

Signal input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Power supply DC8~36V or AC85~264V



Standard Packing:

TUF-2000M Ultrasonic Flow Meter

Steel Belt

TS-2 Transducer

10 Meters Signal Cable



If you need other transducer or extend the signal cable length, please contact us.



Optional Transducers:

Types

Spec.

Model

Measure range(mm)

Temperature

Size

Clamp on

Small

TS-2

DN25~100

-30~90

42×25×32mm

Medium

TM-1

DN50~700

-30~90

69×39×44mm

Large

TL-1

DN300~6000

-30~90

97×54×53mm

High

temperature

clamp on

Small

TS-2-HT

DN15~100

-40~160

45×25×32mm

Medium

TM-1-HT

DN50~700

-40~160

64×39×44mm

Large

TL-1- HT

DN300~6000

-40~160

97×54×53mm



Price Terms︰ FOB Shenzhen
Payment Terms︰ TT/Western Union/Paypal
Packing︰ Export carton
Lead Time︰ 4 days

Product Image

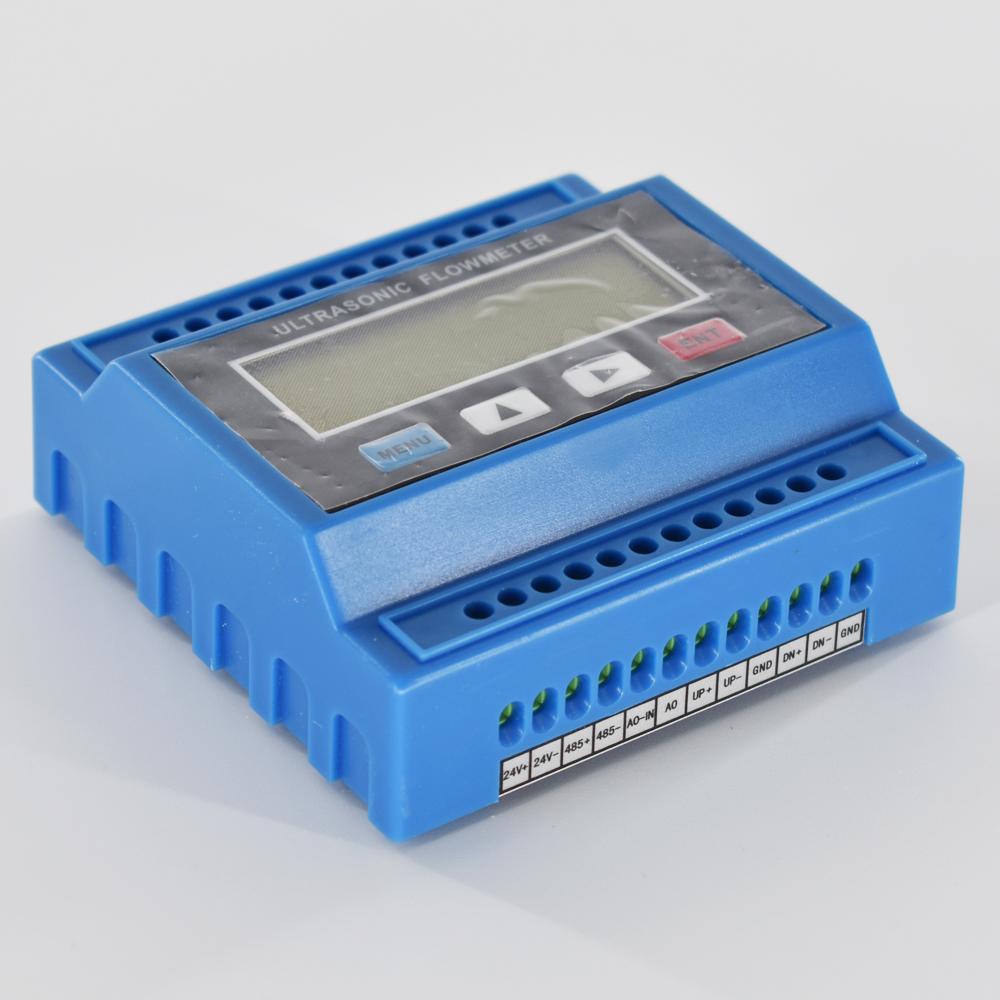

Modular hostModular host

host and accessorieshost and accessories

Wiring holeWiring hole

Wiring holeWiring hole

Installation diagramInstallation diagram

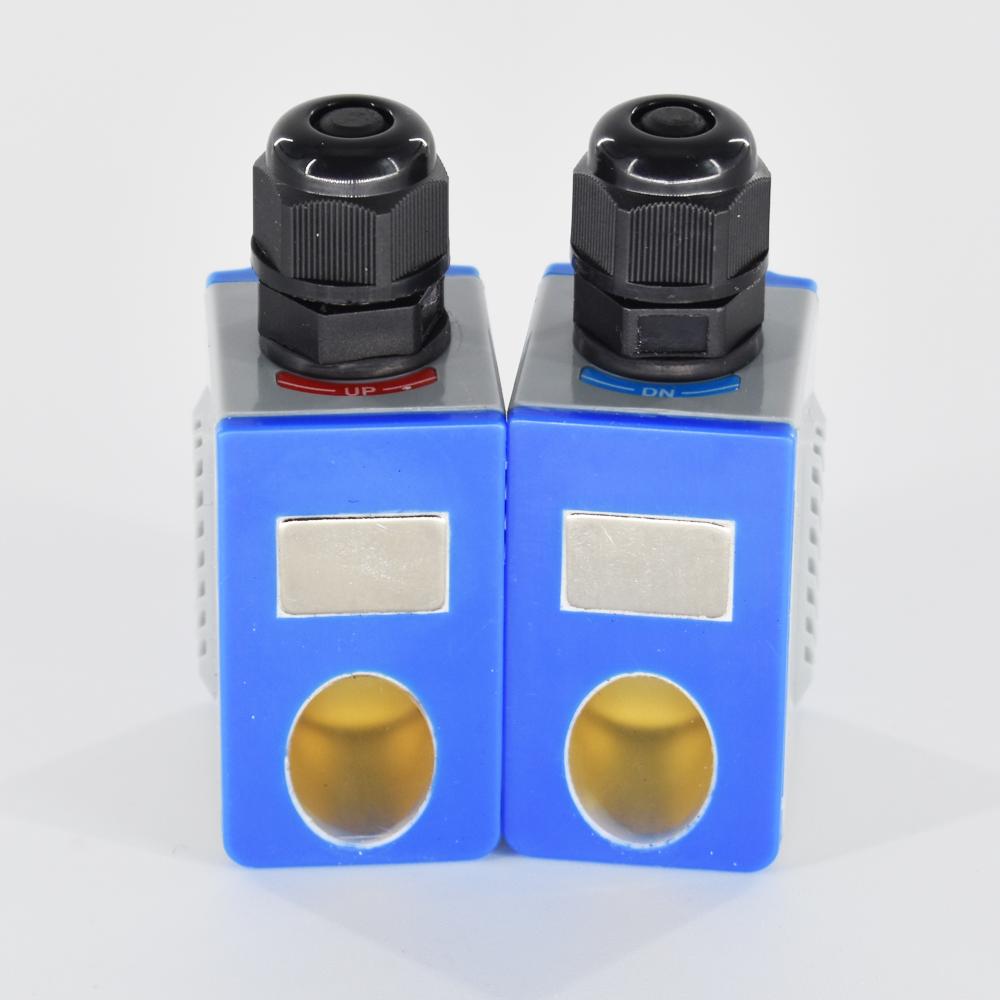

TS-2 sensorTS-2 sensor
