Battery Supply Ultrasonic Flowmeter TDS-100F1W DN15-6000mm S2 M2 L2 Sensor flow

Battery Supply Ultrasonic Flowmeter TDS-100F1W DN15-6000mm S2 M2 L2 Sensor flow

Model No.︰TDS-100F1W

Brand Name︰AERMANDA

Country of Origin︰China

Unit Price︰US $ 510 / Piece

Minimum Order︰1 Piece

Inquire Now

Product Description

Battery Powered Ultrasonic Flowmeter TDS-100F1W Clamp-On Sensor DN15-6000mm S2 M2 L2 transducer digital water flow meter



Features:



●Low starting flow, accuracy class 1.0 (national standard JJG1030-2007), two-way measurement.

●Battery power supply, suitable for measurement needs of various occasions without power supply.

●Strong anti-interference ability

●With a variety of output functions, it can be connected with GPRS/GSM wireless transmission to form a monitoring system.

●With PT1000 temperature sensor, the heat accumulation function can be realized.

Technical parameters:



Battery life: 6 years (not using backlight)

Measurement accuracy: Class 1.0

Repeatability: 0.2%

Measurement cycle: 1s (1 time per second, 128 data collected per cycle)

Velocity range: (0~±12) m/s (qt=0.3m/s, velocity resolution 0.001m/s) forward and reverse bidirectional measurement

Working power: Lithium battery/8~36VDC

Display: Four-line English backlight LCD can display instantaneous flow, cumulative flow, flow rate, etc.

Operation: 4 touch keyboard operation

Signal input: 2-way PT1000 platinum resistance

Signal output: 1 isolated RS485 output

Communication protocol: MODBUS protocol

Other functions: ◇Automatic memory of the first 212 hours, the first 300 days, the first 60 months, the first 10 years of positive/negative net cumulative flow

◇Programmable batch (quantitative) controller, fault self-diagnosis function

◇Can realize software upgrade

Protection class: sensor IP68, host IP65

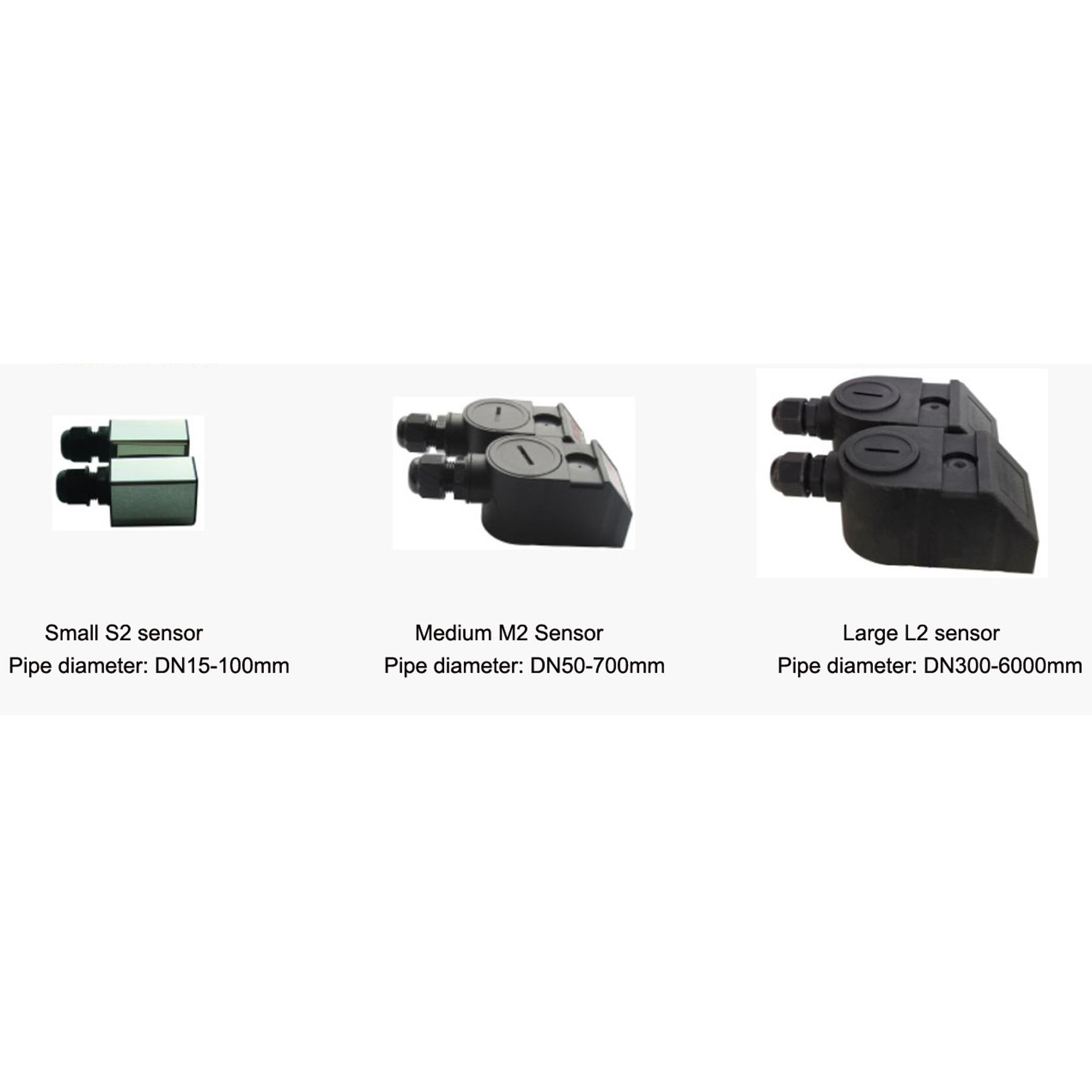

Optional sensors are: clamp-On type, plug-in type, and pipe segment type.



Standard Packaging:



TDS-100F1W Host

Steel Belt

M2 sensor (Please select a suitable sensor according to the pipe diameter)

10 meters Signal Cable

Connection terminal

Price Terms︰ FOB Shenzhen

Payment Terms︰ TT/Western Union/Paypal

Packing︰ Export carton

Lead Time︰ 3 days

Product Image
