Portable Coating Thickness Gauge Tester CM-1210B Thickness Meter Range 0~2000µm

Portable Coating Thickness Gauge Tester CM-1210B Thickness Meter Range 0~2000µm

Model No.︰CM-1210B

Brand Name︰AERMANDA

Country of Origin︰China

Unit Price︰US $ 243 / Piece

Minimum Order︰1 Piece

Inquire Now

Product Description

Portable Coating Thickness Gauge Tester CM-1210B Thickness Meter Range 0~2000µm



The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.



Features

* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.

Principle

Principles

Applications

Examples

F Type
Magnetic Induction
(Iron Base)

Measure the thickness of non-magnetic materials on magnetic materials

Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc

NF Type
Eddy Current
(Aluminium Base)

Measure the thickness of non-conductive coatings on non-magnetic metals

Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

Specifications

Principle

F Magnetic Induction & NF Type Eddy Current

Range

0~2000µm/0~80mil

Resolution

0.1µm/1µm

Accuracy

±1~3%n or±2.5µm

Min.Radius Workpiece

F Type:convex 1.5mm/concave 25mm

NF Type:convex 3mm/concave 50mm

Min.Measuring Area

6mm

Min.Sample Thickness

0.3mm

Metric/Imperial

Functions

Battery Indicator & Automatic Power Off

Data Memory

99 Groups

Operating Conditions

Temperature:0~40ºC

Humidity:10~90%RH

Power Supply

4x1.5V AAA (UM-4)Battery

Dimensions

140x72x34mm

Weight

215g(Not Including Batteries)

Standard Accessories

CM-1210A

CM-1210B

Main Unit

Probe  (F & NF Type)

Calibration Base (F)

Calibration Base (NF)

Calibration Foils

1 set, 5 pieces

Carrying Case

B04

Operation Manual

Optional Accessories

RS-232C Data Cable with Software

Bluetooth Data Adapter with Software

Price Terms︰ FOB Shenzhen

Payment Terms︰ TT/Western Union/Paypal

Packing︰ Export carton

Lead Time︰ 3 days

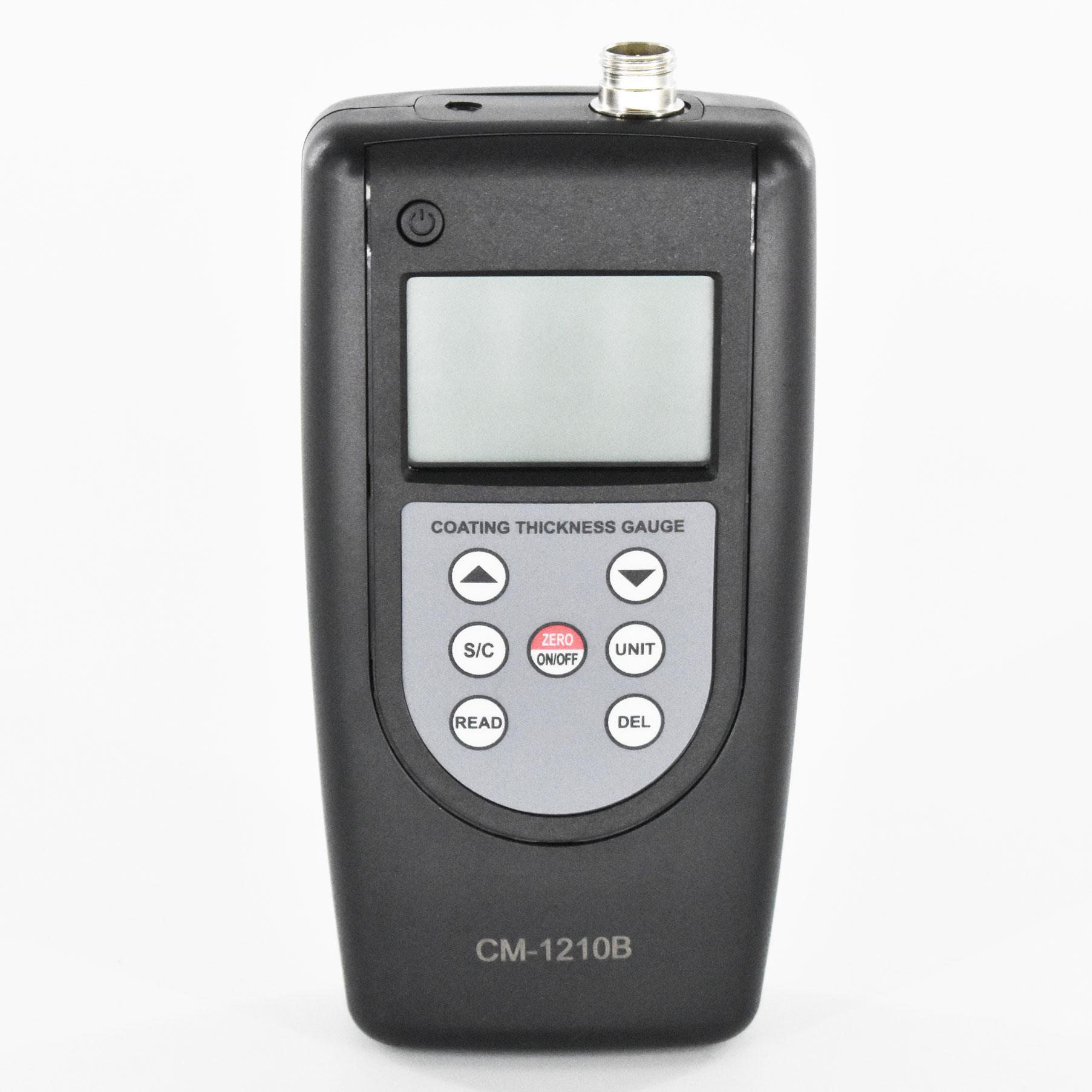

Product Image
